HT35 3.5ton Mini Excavator with Kubota D1703 Engine and Optimized Hydraulic System

Operating weight : 3500kg

Total width (B) : 1720mm

Bucket capacity : 0.12m³

Rated power : 18.5KW/2200rpm

Total length/transportation length (A) : 5029mm

Brand Name : Hightop

Model Number : HT35

Certification : CE，EPA，ISO，TUV

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 100 set per month

Delivery Time : 5-14 work days

Packaging Details : Wooden case

Upper width (D) : 1554mm

Product Name : HT35 Mini Excavator

Total height (shed roof/cab roof) (C) : 2580mm

Turning speed : 9r/min

Contact Now

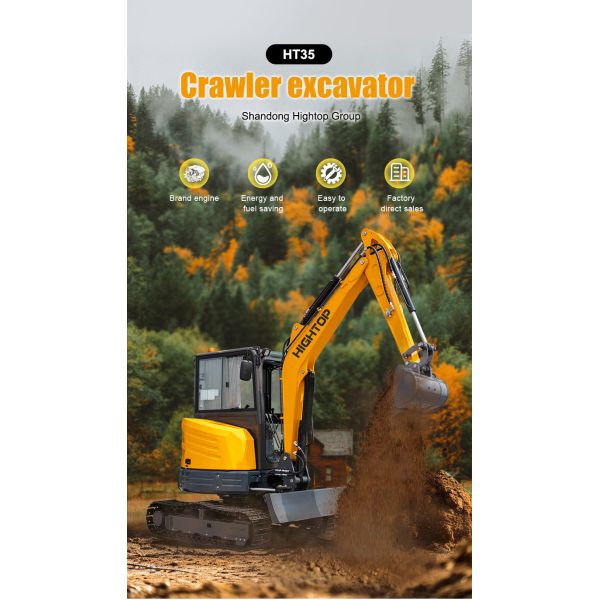

HT35 3.5ton Mini Excavator
Product Overview
The HT35 3.5ton Mini Excavator combines advanced engineering with operator comfort to deliver exceptional performance in compact excavation applications.
Key Features
  • Enhanced Cab Design: One-piece steel structure with integrated heating and air conditioning system, featuring maximized interior space for superior operator comfort
  • Advanced Working Mechanism: Yawing function combined with upper slewing capability, featuring optimized design for strengthened yawing body and extended service life
  • Optimized Hydraulic System: Newly calibrated hydraulic system ensures smooth compound operations and significantly improved slope heavy-duty slewing capacity
  • Versatile Attachment System: Quick and easy replacement of multiple working attachments to adapt to various construction requirements
Technical Specifications
Machine Dimensions
Total length/transportation length (A) 5029mm
Total width (B) 1720mm
Upper width (D) 1554mm
Total height (shed roof/cab roof) (C) 2580mm
Standard track shoe width (F) 300mm
Minimum ground clearance (H) 319mm
Tail turning radius (I) 885mm
Track ground length (J) 1645mm
Track length (K) 2150mm
Bulldozer ground height (R) 393mm
Bulldozer digging depth (T) 461mm
Operating Range
Maximum digging height (a) 4938mm
Maximum unloading height (b) 3376mm
Maximum digging depth (c) 3106mm
Maximum digging distance (d) 5175mm
Minimum radius of turn (e) 2634mm
Max. Height @ Min. Rotation Radius (f) 3716mm
Performance Parameters
Operating weight 3500kg
Bucket capacity 0.12m³
Rated power 18.5KW/2200rpm
Turning speed 9r/min
Climbing ability 58%
Bucket digging force 30.4KN
Bucket rod digging force 18.2KN
Main Components
Engine Kubota D1703
Valve pressure 24MP
Flow sharing main valve HVSE-09-09-P270-BE212
Pump displacement 40cc
Swash plate axial plunger variable pump HP5V45/AV10RB2S2MGA-L1/1-HT1
Travel speed 4.2/2.4km/h
Travel motor Variable plunger motor
Engine oil capacity 5.1L
Fuel tank capacity 50L
Valve system flow 79.2L/min
Cooling system capacity 5.05L
Pump Max. speed 3250r/min
Hydraulic oil tank capacity 55L
